    CMC Microwave generator Advanced Technical Ceramics

    Ask Lasest Price
    Brand Name : CMC
    Model Number : MS18
    Certification : ISO9001, ISO14001, ISO45001, RoHS
    Price : USD 0.2~0.6/piece
    Payment Terms : D/P, T/T, Western Union
    Supply Ability : 1,000,000 pieces per month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    CMC Microwave generator Advanced Technical Ceramics

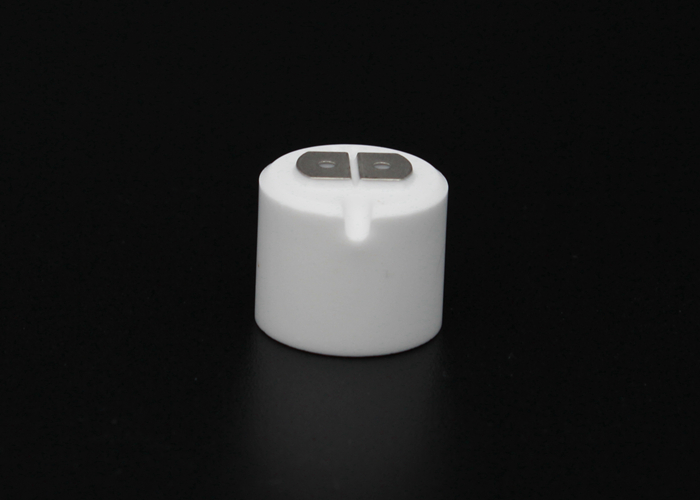

    Advanced Technical Ceramic Parts with Metallized Layer for Magnetron, Alumina Porcelain Connector for Microwave Oven


    1. Description:


    The 95% Aluminum Oxide ceramic components is installed in magnetron, so it called magnetron ceramics.The magnetron series ceramics are produced by high purity complex alumina and nano metallization. It is suitable for brazing of different materials such as copper, aluminum, kovar and so on.


    2. Key Words:


    Magnetron, Microwave oven, Microwave generator, Radar microwave generator,uniform texture and good batch stability,dense, continuous, flat and weldable nickel layer, high flexural strength, high tensile strength and good air tightness,high frequency, high power and good safety components,Stable performance at high temperature circumstance,95% alumina,dry-processing,white, beige, pink or customized.


    3. Parameters:


    Product Parameters
    Physical PropertyMaterial95% Alumina
    Production ProcessDry Pressing
    Product DimensionPer customers' drawing
    Density (g/cm3)3.70-3.75g/cm3
    Water Absorption0%
    Mechanical PerformanceFlexural Strength (Mpa)310Mpa
    Modulus of Elasticity (Gpa)310Gpa
    Hardness (Gpa)12.9Gpa
    Poisson Ratio0.23
    Thermal CharacterLinear Thermal Expansion Coefficient7.2
    Heat Conductivity (W/mk)23
    Electrical PropertyDielectric Constant9.2
    Dielectric Loss Tangent (x10-4)8
    Insulation Strength (x106V/M)15
