    CMC 02 metallized ceramics components

    Ask Lasest Price
    Brand Name : CMC
    Model Number : CMC02
    Certification : IATF16949, ISO9001, ISO14001, ISO45001
    Price : USD 0.25~2.56/piece
    Payment Terms : T/T, L/C
    Supply Ability : 60,000 pieces per month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

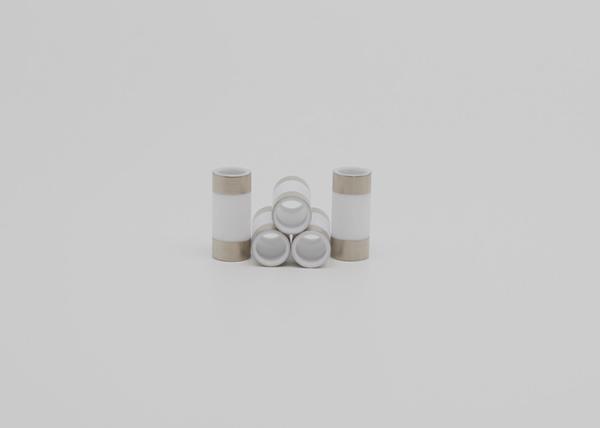

    CMC 02 metallized ceramics components

    CMC 02 metallized ceramics components


    1.Application Field:


    High Vacuum-tight Ceramic-to-metal joints with extremely high bond strengths, excellent consistency and high mechanical strength are good at heat transfer properties, minimum electric resistance and vacuum tightness. The metallic layers make the component suitable for integration by means of both hard and soft soldering. It’s widely used in typical applications such as Defense and Aerospace, Communications, lightning-protection, over current and over voltage protector etc.


    2.Key Words:


    Manufacture samples , open mould ,aluminum oxide,thick-film nickel plating technology,copper and alloys,great limberness,Good corrosion resistance,High intensity,Good high-temperature resistance performance,High purity.


    3.Parameters:


    Product Parameters
    Physical PropertyMaterial95% Alumina
    Production ProcessDry Pressing+Brazing
    Product DimensionPer customers' drawing
    Density (g/cm3)3.70-3.75g/cm3
    Water Absorption0%
    Mechanical PerformanceFlexural Strength (Mpa)310Mpa
    Modulus of Elasticity (Gpa)310Gpa
    Hardness (Gpa)12.9Gpa
    Poisson Ratio0.23
    Thermal CharacterLinear Thermal Expansion Coefficient7.2
    Heat Conductivity (W/mk)23
    Electrical PropertyDielectric Constant9.2
    Dielectric Loss Tangent (x10-4)8
    Insulation Strength (x106V/M)15
    Metalized Ceramic PerformanceAir Tightness (Pa·m3/s)≤10-8
    Bulk Resistivity (Ω·cm)≥1010 (20°C), ≥106 (300°C)
    Bonding Strength (Mpa)≥120Mpa
    Metallization Thickness (μm)≥20μm
